| Kroeplin 數位三點式內卡規 | |||||||
| 型號 |
測定範圍 (mm) |
解析度 (mm) |
測頭樣式 |
A (mm) |
B (mm) |
Hb (mm) |
L (mm) |

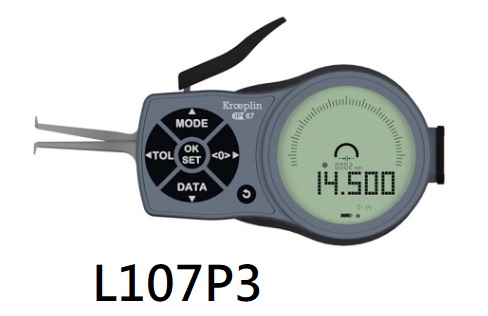

| L107P3 | 7-14 | 0.002 |
[1] 球形Φ0.6 |
2.2 | 0.8 | 2.5 | 34 |
| L210P3 | 10-20 | 0.005 |
[2] 球形Φ1.0 |
3.5 | 1.6 | 4.6 | 75 |
| L215P3 | 15-30 | 5.0 | 16 | 5.8 | 77 | ||
| L225P3 | 25-45 | 0.005 |
[3] 球形Φ1.0 |
7.0 | 1.6 | 7.3 | 84 |
| L240P3 | 40-60 | 8.0 | 1.6 | 12.2 | 84 | ||
| L255P3 | 55-75 | 0.005 |
[3] 球形Φ1.0 |
8.0 | 1.6 | 12.2 | 84 |
| L270P3 | 70-90 | 8.5 | 1.6 | 12.2 | 84 | ||
| L285P3 | 85-105 | 9.0 | 1.6 | 12.2 | 84 | ||
